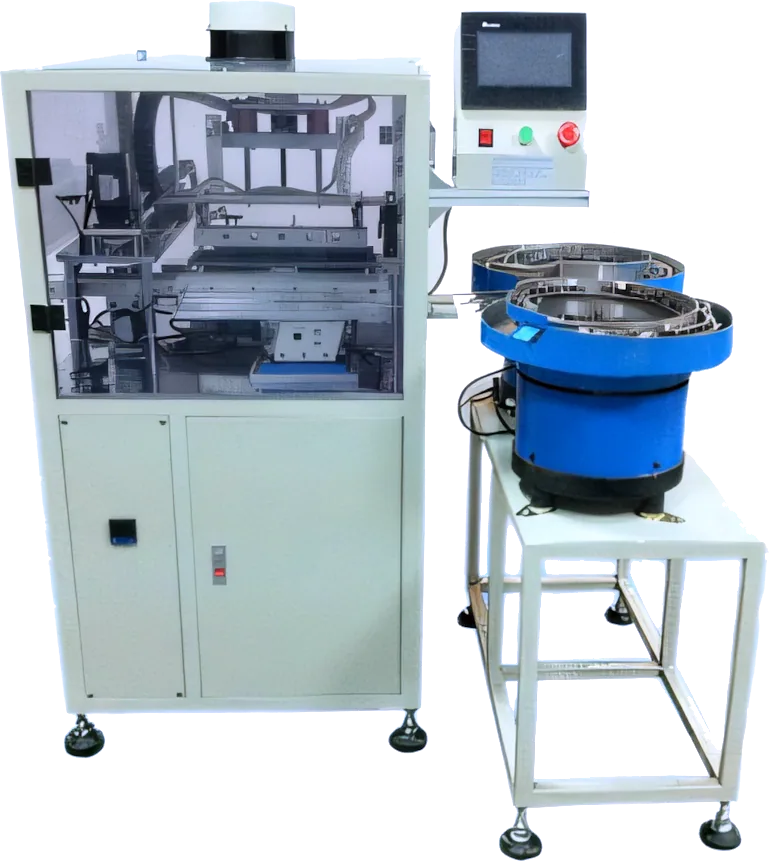

PME-03VB
Fully Automatic Dip Soldering Machine, Twin Bowl
- Control
- Servo Motor & PLC
- Power
- AC 220V, 50/60Hz
Station 04 · Soldering
PME-03BCM
Fully Automatic Dip Soldering Machine, 3-Way Loading
Loads from a bowl feeder, a conveyor or manual stations, so one machine covers coils and transformers of every size. It picks the bobbin, fluxes, dip-solders at a programmed angle and unloads.
- Loading
- Bowl, conveyor or manual
- Control
- PLC & servo motor
- Power
- AC 220 V, 3,500 W
- Footprint
- 920 × 700 mm
Features
- Applicable for Vertical or Horizontal Coil, transformers or Relay component soldering work
- 3 ways feeding type: 1) Bowl feeder 2) Conveyor belt 3) Manual load stations, to address all sizes of coils and from small to large quantity production
- Automatic pick bobbin, auto flux dipping, auto dip soldering and auto unloading to conveyor / manual load
- Suits any transformers, shapes and sizes
- Programmable angle rotation for dip soldering
- Automatic dross cleaning, solder surface height check / detection
- Custom design according to customer's special soldering request and specification
- Functional, stable, high efficiency, labor cost saving and simple operation
Specifications
| Operation | Control Touch Panel Interface |
|---|---|
| Control | PLC & Servo Motor |
| Air Pressure | 4–6 kg/cm² |
| Electric Source | AC 220V, 50/60Hz, 3500W |
| Unit Dimension | 920(L) × 700(W) × 1300(H) mm |
Configuration
Main components
| Component | Brand |
|---|---|
| Servo Motor | Inovance Servo |
| PLC | Xinje |
| HMI Touchscreen | Xinje |
| Guideway | AirTac |
| Leadscrew | TBI |
| Solenoid Valve | AirTac |
| Cylinder | AirTac |
| Tester | Zhixin |
Pictures, specifications and design are subject to change without notice for improvements. Contact us to confirm the configuration for your parts.
