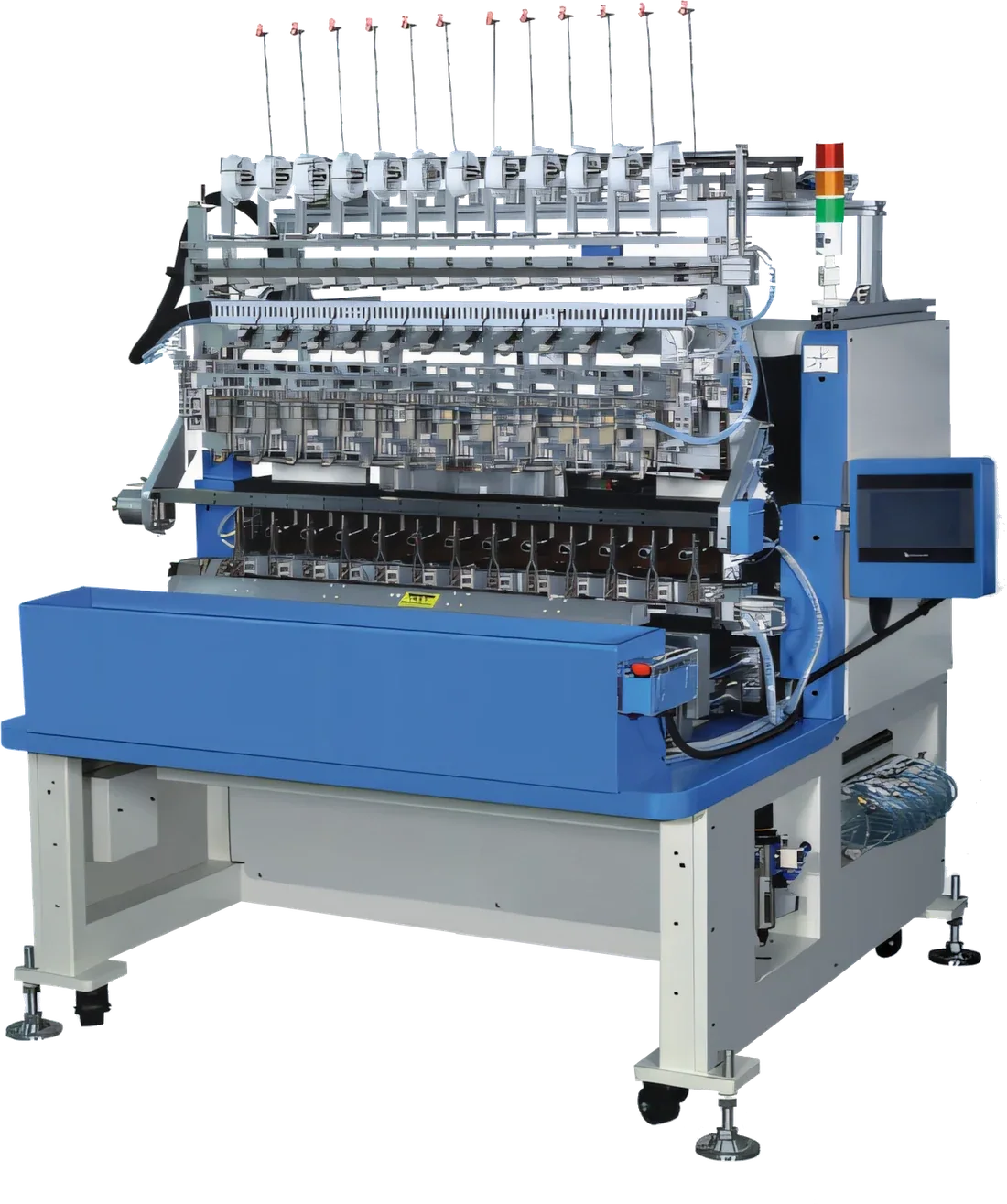

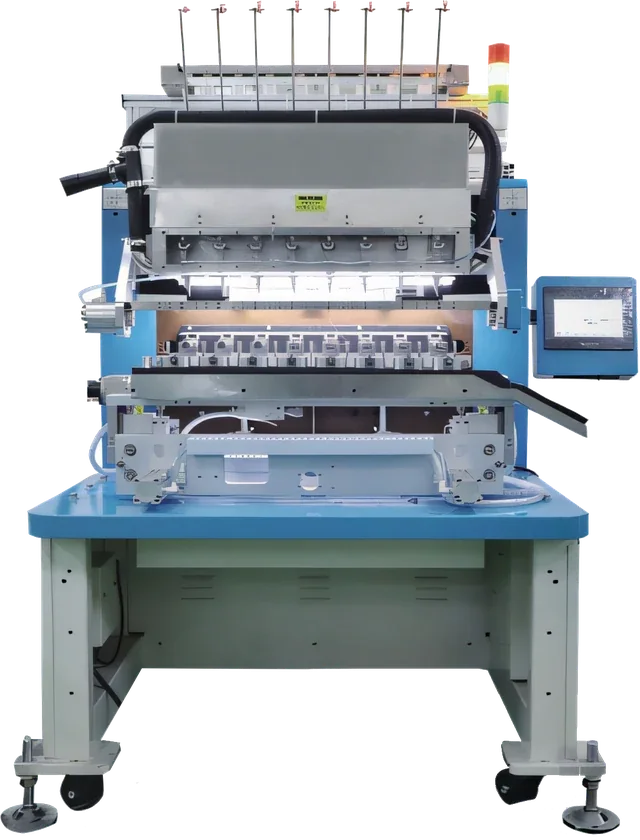

PME-8008 / 8012 / 8016 / 8020
Multi-Spindle CNC Coil Winding Machine
- Spindles
- 8 / 12 / 16 / 20
- Spindle speed
- 12,000 rpm
- Wire diameter
- 0.02–0.4 mm
PM Electronics · Noida
Machines that build coils, transformers and relays
Automatic and bench machines for each step of magnetics production, from pin insertion and CNC winding to dip soldering and final test. Many are built around the customer's own bobbin, terminal or line.
- models in 52 machine lines
- 72
- finest winding wire, PME-8000 series
- 0.02mm
- taping spindle speed, PME-1804
- 20,000rpm
- dispensing precision, PME-R650A
- ±0.015mm
- titanium solder pot rating
- 600°C
Production line
A machine for every station
A transformer passes six stations between bare bobbin and tested part. PME builds machines for all six, and for the wire and adhesive work around them.
-
01
Insertion

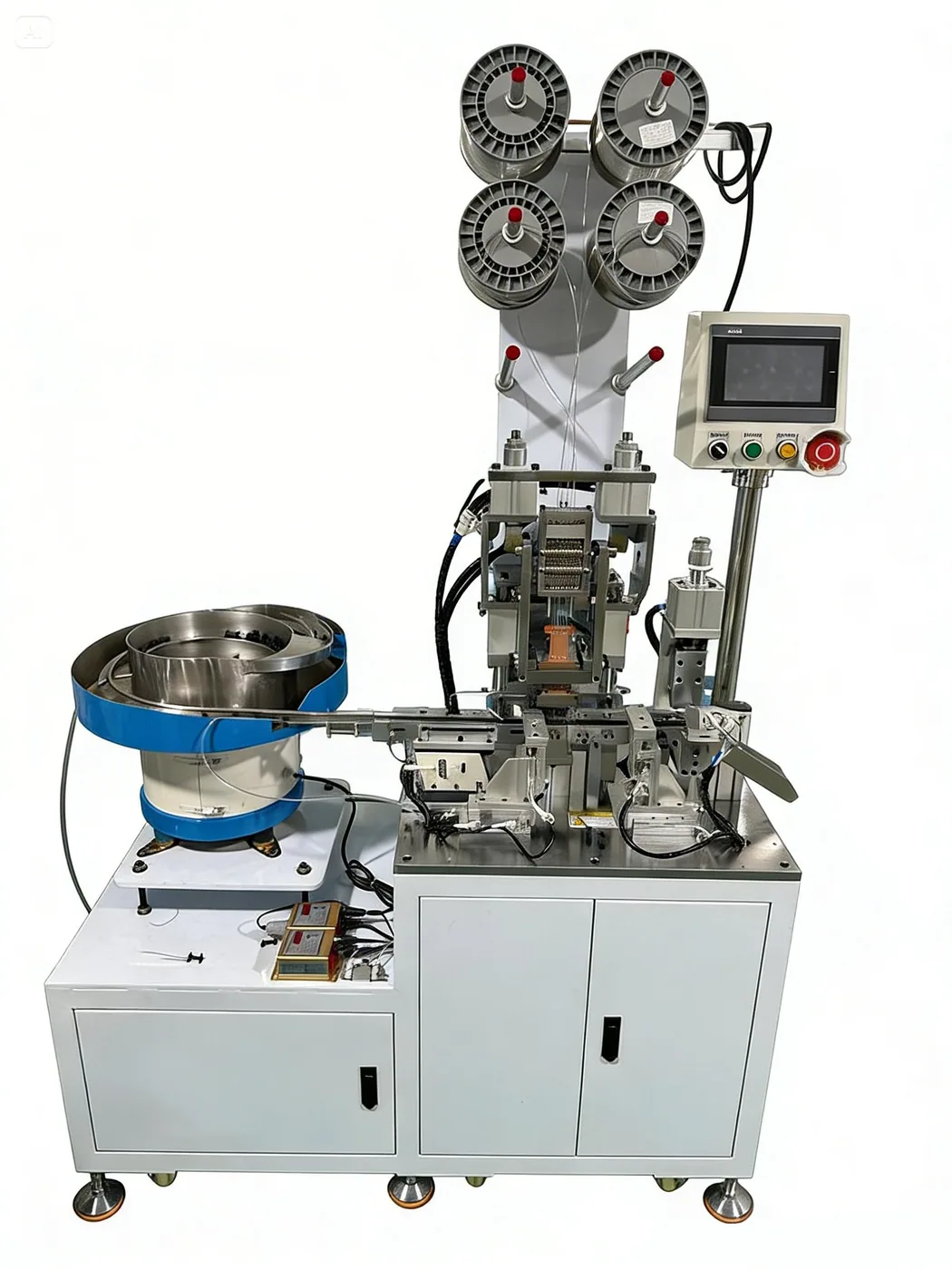

Pins, tab terminals and EI laminations into bobbins and cores.
6 machines -
02
Winding
Multi-spindle CNC winders, sleeving and large-transformer winders.
4 machines -
03
Taping

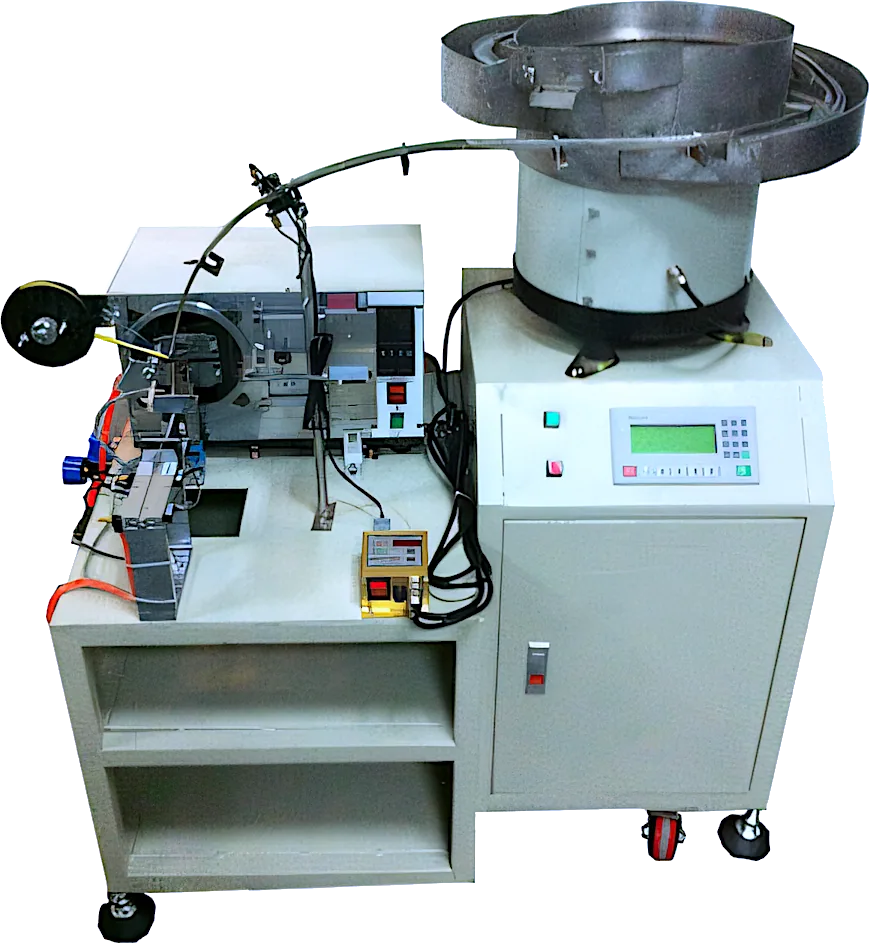

Coil and core taping, EE core insertion and tape cutting.
9 machines -
04
Soldering
Dip soldering with auto flux, solder pots and robotic irons.
15 machines -
05

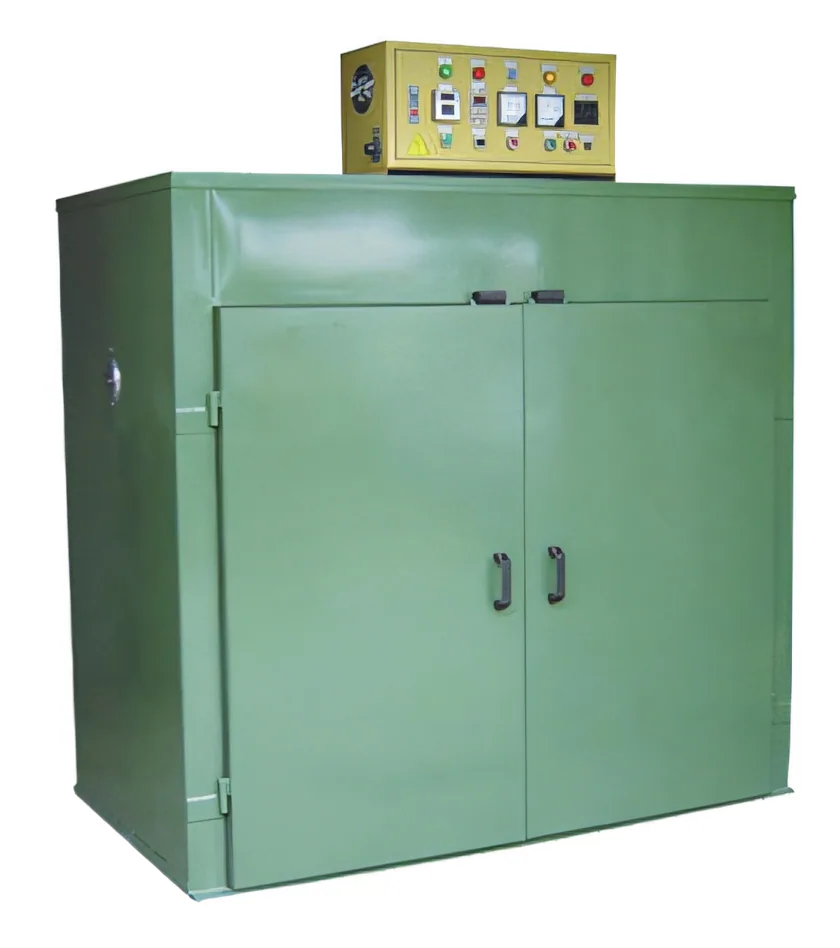

Varnish & dry
Varnish impregnation tanks and hot-air curing ovens.
3 machines -
06
Testing
Hipot, inductance and universal tests with NG sorting.
5 machines
Product sheets
Five machines with full data sheets
Specifications, main components and line layouts, ready to download as PDF from each machine's page.
PDF sheet

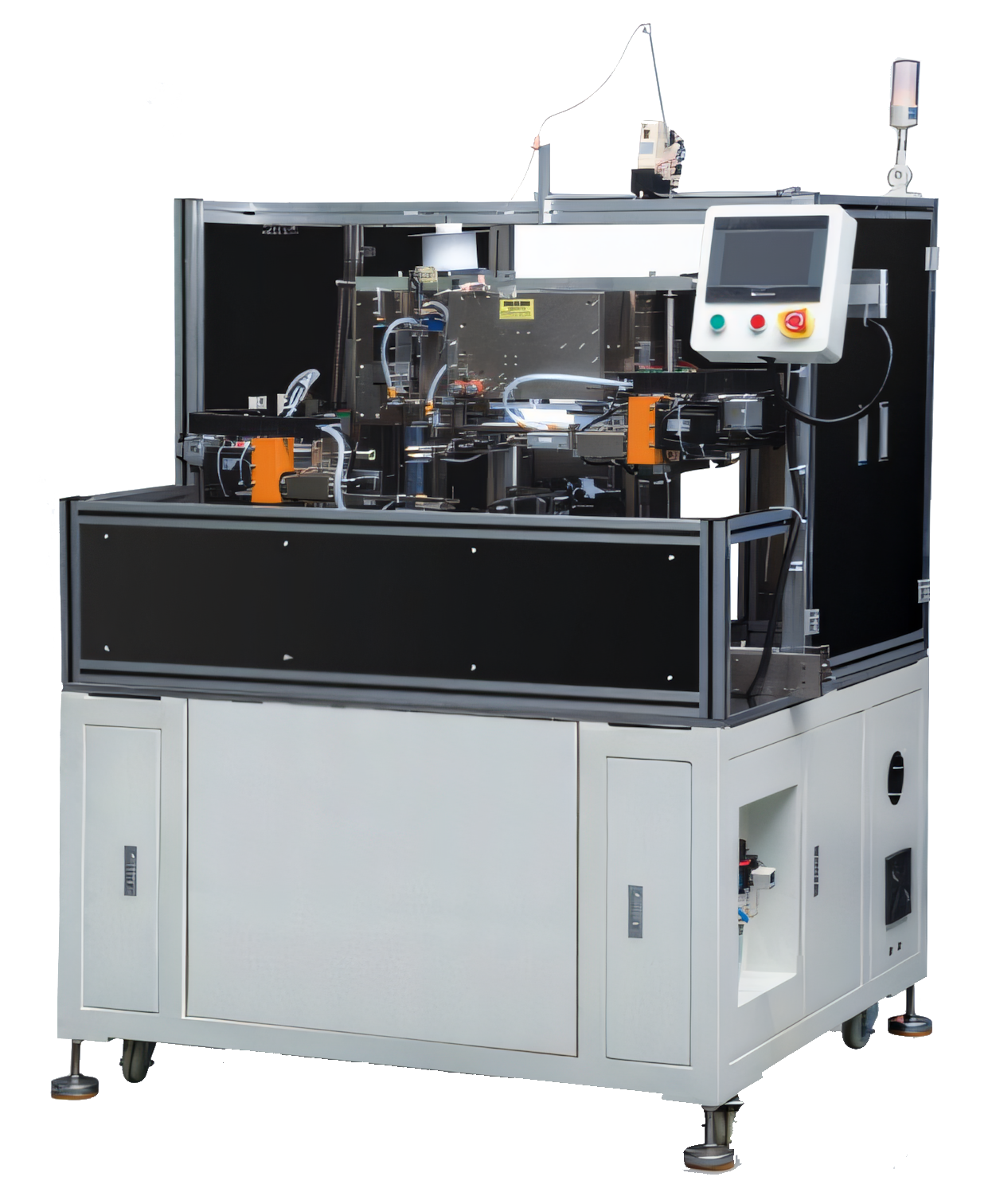

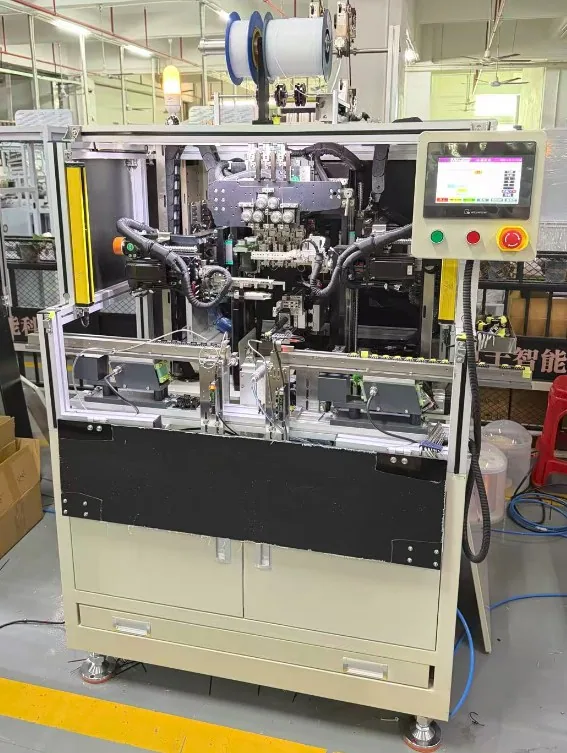

PME-8101 / 8102 / 8103 TUWT
Auto Sleeving, Winding & Taping Machine
- Wire range
- 0.12–0.80 mm
- Winding speed
- Up to 10,000 rpm
- Output
- 280–500 pcs
PDF sheet
PME-03BCM
Fully Automatic Dip Soldering Machine, 3-Way Loading
- Loading
- Bowl, conveyor or manual
- Control
- PLC & servo motor
- Power
- AC 220 V, 3,500 W
PDF sheet

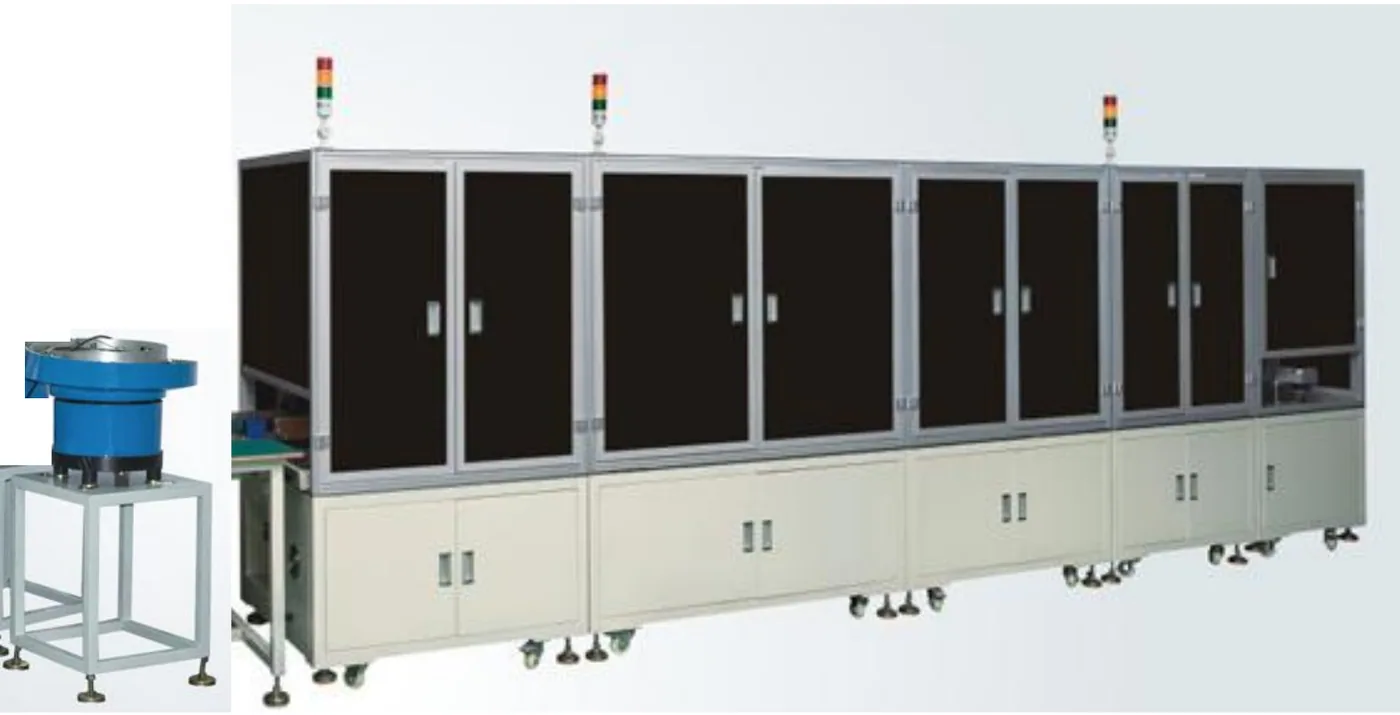

PME-1060MC
EE Core Taping, Testing & Tray Unloading Machine
- Process
- Tape, test, sort, tray
- Control
- PLC & servo motor
- Power
- AC 220 V, 800 W
PDF sheet
PME-1080FS

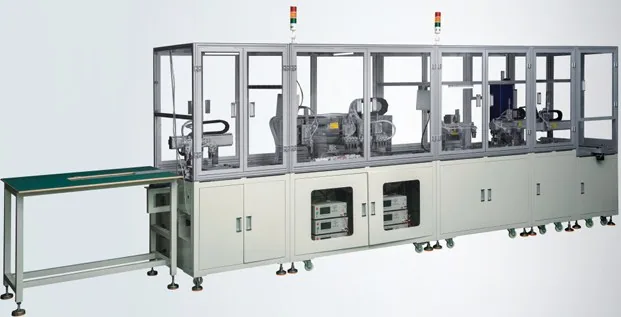

Auto Transformer Coil Testing Line
- Tests
- Hipot and universal
- Control
- PLC & servo motor
- Power
- AC 220 V, 500 W
How we build
Built around your part, ready for your line
Made to your part
Feeders, jigs and molds are made for the bobbin, terminal or coil you produce. The PME-10R is built to the customer's bobbin and tab terminal, and each PME-1080FS test line is laid out for one transformer model.
Standalone or linked

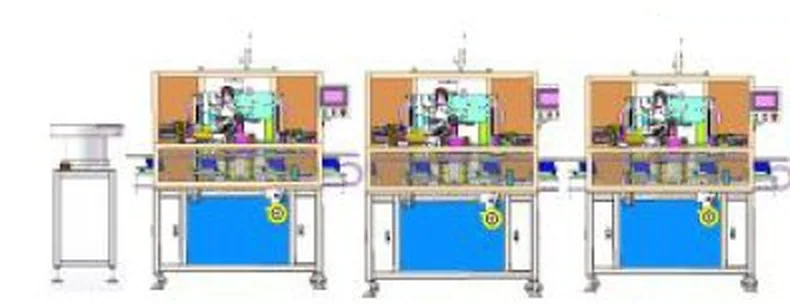

Most automatic machines run alone or join a line. PME-8101 TUWT units link behind a bowl feeder for tube insert, winding and taping, and the PME-1018 passes tested parts on to the next process.
Parts you can source
Automatic machines use widely stocked components: Inovance servo motors, Xinje PLCs and touch panels, AirTac pneumatics and TBI lead screws, so spares are easy to find.
Tell us what you make
Share your coil, transformer or relay and the output you need, and we'll recommend a machine or a line.
